JEE Challenger
More from Hydrocarbons

Identify Compound X Formed from Hydroboration Oxidation Sequence

Comprehension Passage

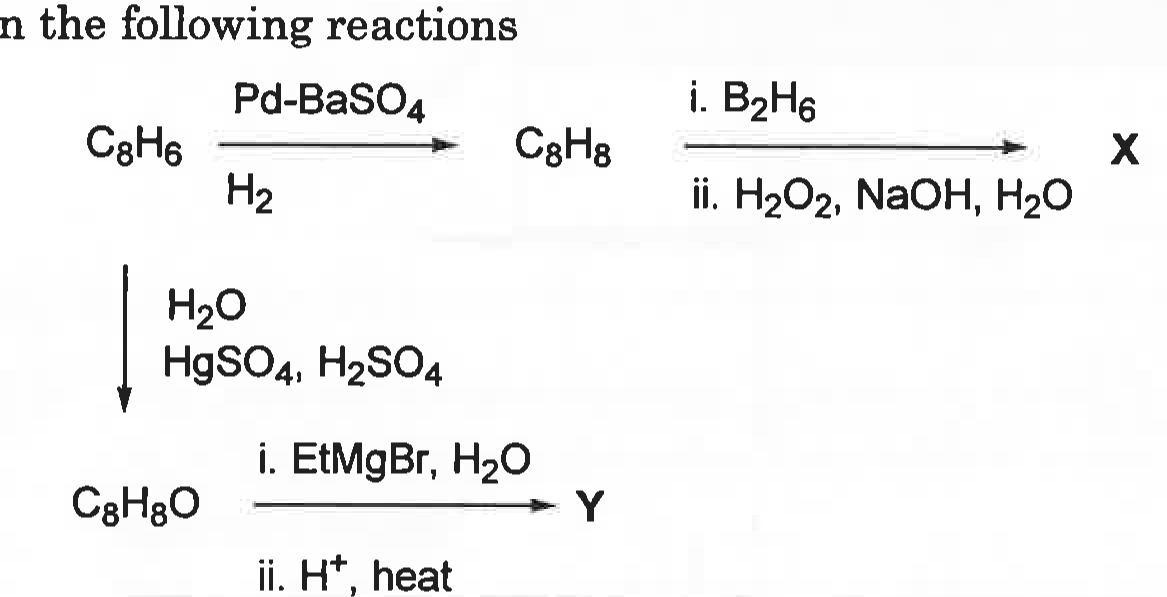

Consider the following sequence of organic transformations starting from C8H6\text{C}_8\text{H}_6:

Passage Diagram 1

Select the correct structure corresponding to compound X\mathbf{X}.

Options

A
Option A Diagram 1
B
Option B Diagram 1
C

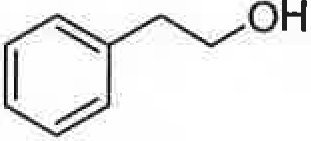

Option C Diagram 1
Correct
D
Option D Diagram 1

Step-by-Step Solution

To identify the structure of compound X\mathbf{X}, let us analyze the reaction sequence step by step:

  1. Identification of the Starting Material (C8H6\text{C}_8\text{H}_6): The degree of unsaturation (DU) for the compound C8H6\text{C}_8\text{H}_6 is calculated as: DU=C+1−H2=8+1−62=6\text{DU} = C + 1 - \frac{H}{2} = 8 + 1 - \frac{6}{2} = 6 Since the molecule undergoes controlled hydrogenation and hydration reactions characteristic of alkynes attached to a benzene ring (which accounts for 44 degrees of unsaturation), the structure of C8H6\text{C}_8\text{H}_6 is phenylacetylene (Ph−C≡CH\text{Ph}-\text{C}\equiv\text{CH}).

  2. Controlled Hydrogenation to Form C8H8\text{C}_8\text{H}_8: Phenylacetylene undergoes partial reduction in the presence of Lindlar's catalyst (Pd-BaSO4\text{Pd-BaSO}_4 / H2\text{H}_2) to yield styrene (Ph−CH=CH2\text{Ph}-\text{CH}=\text{CH}_2): Ph−C≡CH→H2,Pd-BaSO4Ph−CH=CH2(C8H8)\text{Ph}-\text{C}\equiv\text{CH} \xrightarrow{\text{H}_2, \text{Pd-BaSO}_4} \text{Ph}-\text{CH}=\text{CH}_2 \quad (\text{C}_8\text{H}_8)

  3. Hydroboration-Oxidation to Form Compound X\mathbf{X}: Styrene (Ph−CH=CH2\text{Ph}-\text{CH}=\text{CH}_2) is subjected to hydroboration-oxidation using diborane (B2H6\text{B}_2\text{H}_6) followed by alkaline hydrogen peroxide (H2O2/NaOH\text{H}_2\text{O}_2 / \text{NaOH}).

    • The hydroboration-oxidation reaction results in the overall addition of H2O\text{H}_2\text{O} across the carbon-carbon double bond with anti-Markovnikov regioselectivity.
    • Consequently, the hydroxyl group (−OH-\text{OH}) attaches to the less substituted terminal carbon atom: Ph−CH=CH2→ii. H2O2,NaOH,H2Oi. B2H6Ph−CH2−CH2OH\text{Ph}-\text{CH}=\text{CH}_2 \xrightarrow[ii.\ \text{H}_2\text{O}_2, \text{NaOH}, \text{H}_2\text{O}]{i.\ \text{B}_2\text{H}_6} \text{Ph}-\text{CH}_2-\text{CH}_2\text{OH}

Thus, compound X\mathbf{X} is 2-phenylethan-1-ol (Ph−CH2−CH2OH\text{Ph}-\text{CH}_2-\text{CH}_2\text{OH}), which corresponds to structure (C).
